ULC

Oval Lubricating and Fuel Oil Storage Tanks Double Wall

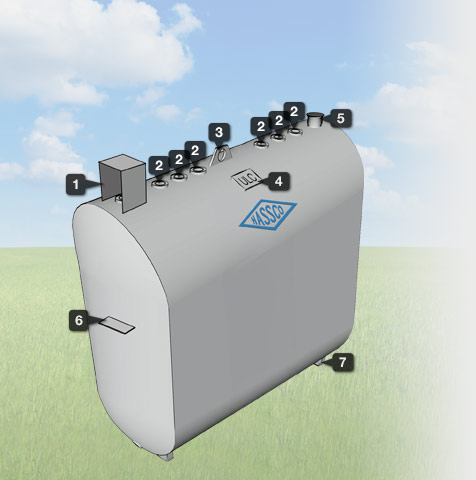

  1. Vacuum Gauge
  2. 2” NPT Fitting
  3. Lift Lug
  4. ULC Label
  1. 1” Socket Coupling with Rubber Gasket
  2. 1/2” Round Bar Handle
  3. Support Saddle with 1 1/4”
Oval Lubricating and Fuel Oil Storage Tanks Double Wall
MaterialCapacity HeightLengthWidthWeight
12 450L 48” 30” 24” 365lbs.
12 680L 48” 48” 24” 460lbs.
12 900L 48” 60” 24” 545lbs.
12 1135L 48” 72” 24” 710lbs.
12 1200L 48” 76” 24” 725lbs.

General Information

HASSCO’s oval storage tank lineup includes double wall and double bottom tank designs. These tanks are specifically designed for the safe storage of fuel and lubricating oils. Tanks with up to 8 - 2” NPT fittings are available and can be customized to suit your installation requirements. Heavy-duty saddle leg supports are wielded at each end of the tank with 1 1/4” NPT, which allows for raising, levelling or tilting the tank towards the drain outlet. All tanks are phosphate-washed before a high-build metal treatment is applied with two top coats of enviro-smart water-based paint.

Inquire about this Product

Downloads

Here are the downloads available for our line of Oval Lubricating and Fuel Oil Storage Tanks Double Wall

Spec Sheet

Options

  • Tank gauges, alarms, and pumping systems
  • Single-Wall version available
  • Powder Coating

Sizing

  • Up to 1200L/260G

Conformity

  • ULC S602
