ULC

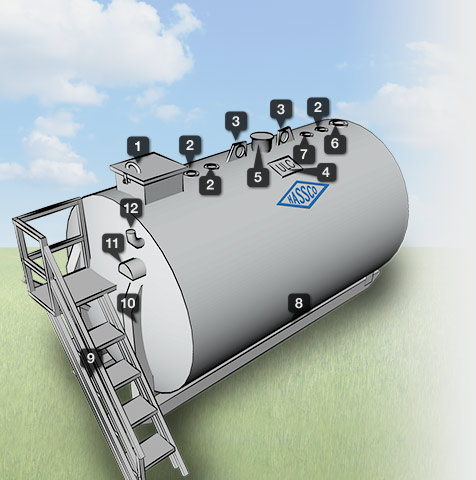

Larger Aboveground Steel Tanks

  1. Lockable Overfill Box c/w fill
  2. 2" Threaded Fitting
  3. Lift lug
  4. ULC Label
  5. Emergency Vent
  6. 4" Threaded Fitting
  1. 3" Threaded Fitting
  2. Full Length Frame (optional)
  3. Stairs & Platform
  4. Post Beam Supports
  5. Vacuum Gauge
  6. Emergency Vent (interstice)
Larger Aboveground Steel Tanks
MaterialCapacity DiameterLengthWeight
3/16” 10000L/3200G 79” 125” 4600lbs.
3/16” 15000L/3300G 79” 188” 6000lbs.
3/16” 18000L/4000G 84” 201” 8000lbs.
3/16” 25000L/5500G 99” 201” 9500lbs.
3/16” 35000L/7700G 99” 281” 11500lbs.
1/4” 50000L/11000G 118” 279” 18000lbs.
1/4”

60000L/13000G

118”

336”

21000lbs.

General Information

HASSCO’s aboveground storage tanks are manufactured with North American hot rolled steel & meets or exceeds ULC specifications. Our vacuum monitored tanks will provide safe fuel containment for years to come. Tanks include standard post beam supports with stairs & platform. Emergency venting, spillbox, fill cap & vacuum gauges are all standard. Available in single wall or double wall configurations. Double wall tanks successfully comply with secondary containment requirements therefore removing the need of dyking systems. All tanks are blast cleaned prior to applying 1 coat epoxy primer and 2 coats premium urethane finish.

Downloads

Here are the downloads available for our line of Larger Aboveground Steel Tanks

Options

  • Tank gauges, alarms, heaters, and pumping & card-lock systems
  • Vehicle barrier systems and catwalks
  • Customized to your specifications as needed
  • Double wall wraps of 340° or 360°
  • Single wall available

Options

  • Up to 60 000L/13 000G

Conformity

  • ULC S601
