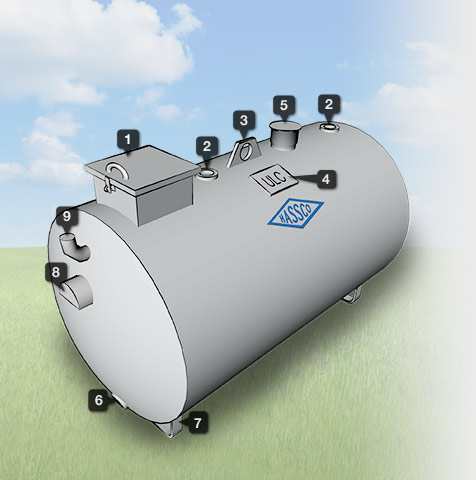

Double Wall Steel Utility Tanks

  1. Lockable Overfill Box c/w fill
  2. 2” Threaded Fitting
  3. Lift Lug
  4. ULC Label
  5. Emergency Vent
  1. 1” Bottom Outlet
  2. Legs
  3. Vacuum Gauge
  4. Emergency Vent (interstice)
Double Wall Steel Utility Tanks
MaterialCapacity DiameterLengthWeight
12 450L/100G 30” 48” 210lbs.
12 1100L/250G 38” 60” 450lbs.
12 1360L/300G 38” 72” 580lbs.
12 2200L/500G 50” 72” 950lbs.
12 4500L/1000G 50” 144” 1980lbs.

General Information

HASSCO’s double wall tanks are an industry proven, cost effective way to store various fresh fuels. Best suited for farm and construction applications, these tanks come with 4 threaded openings, a fill cap, emergency/normal venting and a lockable spill-box incorporated into the design of the tank. Our double wall tanks come standard with a 340 degree wrap and is continually monitored by a vacuum gauge installed in the tank. All HASSCO tanks are phosphate washed prior to applying a high build metal treatment and two top coats of enviro-smart water based paint. Other coating options such as epoxy and powder coatings are available upon request.


Here are the downloads available for our line of Double Wall Steel Utility Tanks


  • Tank gauges, alarms, liners, heaters and pumping systems
  • Powder Coating
  • Interior linings
  • Available in a variety of sizes and configurations.


  • Up to 4500L/1000G


  • ULC S601
