CGSB 43.146

CGSB Rectangular Mobile Tanks

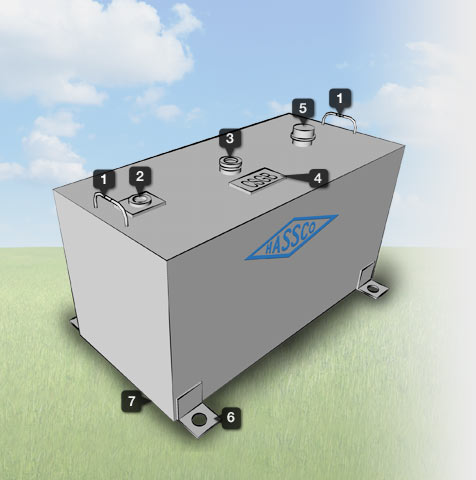

  1. Handles
  2. 2” Pump Outlet c/w Support Plate
  3. Emergency Vent
  4. UN/CGSB Label
  1. 2” Fill c/w Vented Cap
  2. Bolt Down Lugs
  3. Skid Frame (on 680L and up)
CGSB Rectangular Mobile Tanks
MaterialCapacity HeightLengthWidthWeight
11 225L/50G 24” 24” 24” 115lbs.
11 450L/99G 24” 48” 24” 215lbs.
3/16” 680L/150G 24” 60” 30” 440lbs.
3/16” 900L/200G 31” 60” 31” 530lbs.
3/16” 1100L/250G 34” 60” 34” 620lbs.
3/16” 2200L/500G 40” 72” 50” 1100lbs.
1/4” 4500L/1000G 48” 96” 60” 2300lbs.

General Information

HASSCO’s Transport Canada approved mobile IBCs are built tough to withstand the rigours of transporting fuel to any off-road/on-road location. All tanks come with a TransCAN approved vented fill cap, emergency vent, internal baffles and reinforced pump mounts. These tanks are best suited for applications requiring the transfer of flammable fuels. All HASSCO tanks are phosphate washed prior to applying a high build metal treatment and two top coats of enviro-smart water based paint. Other coating options such as epoxy and powder are available upon request.

Inquire about this Product

Downloads

Here are the downloads available for our line of CGSB Rectangular Mobile Tanks

Spec Sheet
Dip Chart

Options

  • Double wall version
  • Transfer pumps and meters
  • Recertification of expired mobile tanks
  • Powder Coating

Sizing

  • Up to 4500L/1000G

Conformity

  • Transport Canada\CGSB
